Kuka Robot Dress Pack Industrial Robotic Pipeline Package Custom Design
In the realm of industrial automation, Kuka robots have established themselves as a leading force, renowned for their precision, reliability, and versatility. To fully harness the potential of these robots in complex industrial settings, a well - designed and customized robot dress pack, specifically an industrial robotic pipeline package, becomes indispensable.
Ensuring Uninterrupted Operation
Industrial pipelines are often associated with harsh environments, including the presence of dust, debris, chemicals, and extreme temperatures. A Kuka robot dress pack acts as a protective barrier, shielding the robot's sensitive components such as cables, hoses, and sensors from these external elements. By preventing damage to these crucial parts, the dress pack ensures the robot can operate continuously without unexpected breakdowns, minimizing production downtime and maximizing productivity.
Facilitating Complex Movements
Robots in industrial pipeline applications are required to perform a wide range of complex movements, including bending, twisting, and reaching into confined spaces. A well - designed dress pack is engineered to accommodate these movements without restricting the robot's range of motion. It allows the cables and hoses to move smoothly and freely, preventing tangling or snagging, which could otherwise impede the robot's performance and cause errors in the pipeline - related tasks.
Enhancing Safety
Safety is of paramount importance in industrial environments. A properly designed Kuka robot dress pack can incorporate safety features such as flame - retardant materials, anti - static properties, and emergency stop mechanisms. In the event of a fire or an electrical spark, the flame - retardant materials can slow down the spread of fire, while the anti - static properties reduce the risk of static electricity build - up, which could potentially ignite flammable substances in the pipeline area. The emergency stop mechanisms integrated into the dress pack can quickly halt the robot's operation in case of an emergency, protecting both the robot and the surrounding personnel.
Technical Specifications
| Parameter |
Specification |
| Model |
KUKA KR210 R3100-2 |
| Robot Type |
6-Axis Articulated Robot |
| Max Payload |
210 kg |
| Max Reach |
3100 mm |
| Repeatability |
±0.06 mm |
| Protection Class |
IP65 |
| Mounting |
Floor, Wall, or Ceiling |
| Controller |
KUKA KR C4 / KR C5 |
Customizable Pipeline Package for Enhanced Durability

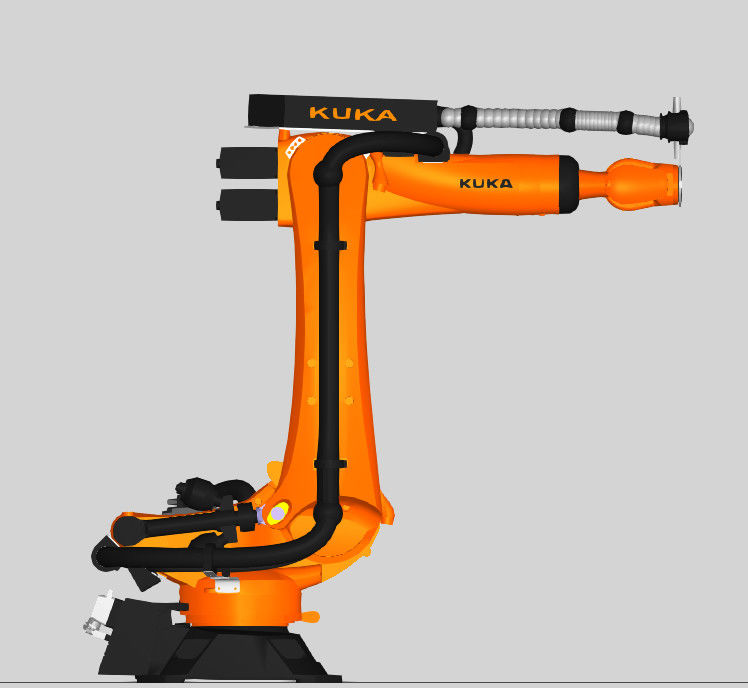

The KUKA KR210 R3100-2 can be equipped with a custom-designed robotic pipeline package, including:
✔ High-Flex Power & Signal Cables – Ensures longevity in continuous motion applications.
✔ Protective Sleeving & Strain Relief – Prevents cable damage from abrasion and bending.
✔ Tool-Specific Wiring – Customized for welding guns, grippers, or sensors.
✔ Quick-Connect Interfaces – Reduces downtime during maintenance.
Industrial Applications
1. Automotive Welding & Assembly
-
Spot welding, arc welding, and laser welding for car body fabrication.
-
Handling heavy automotive components with precision.
2. Heavy Machinery Manufacturing
3. Foundry & Metal Processing
4. Logistics & Palletizing
5. Custom Automation Solutions
Advantage:
| Service |
We will according the customer requirement to design the Dress packs. Ensure to provide the best solution to customer. |
| Warranty |
6 month |
Place of origin: China
Brand Name: Original
Model Number: KR210 R3100-2 Robot piping package
Pipeline package includes
| Title |
Describe |
| Cable protection hose |
High flexibility, distortion resistance, high temperature resistance |
| Inner sleeve |
Applies to 6-axis ends for connection to flared hoses |
| Pipeline package 6-axis flared |
More wiggle room at the end |
| Rotary fixation |
Can guarantee a certain Angle of rotation applied to special environments |
| Anti-friction ball |
Protective hose won't be worn out by the robot arm |
| Fixed inner clamp |
Flexible hose can be fixed |
| Star divider |
Clamp pipe pack internal cable, air pipe |
| Ball adapter |
Two-way flares release hose torque |
| Hose holder |
Secure the hose to the mechanical arm
|
| 6 axis support frame |
The support line, which moves with the flange, needs to be customized to the robot |
FAQ:
*Q:Why are we?
A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.
*Q:How about our service concept?
A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.
*Q:What products can we offer?
A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.
*Q:Why you purchase from us?
A:You don’t worry about after-sales problem to cooperation with us.
About us
Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.
